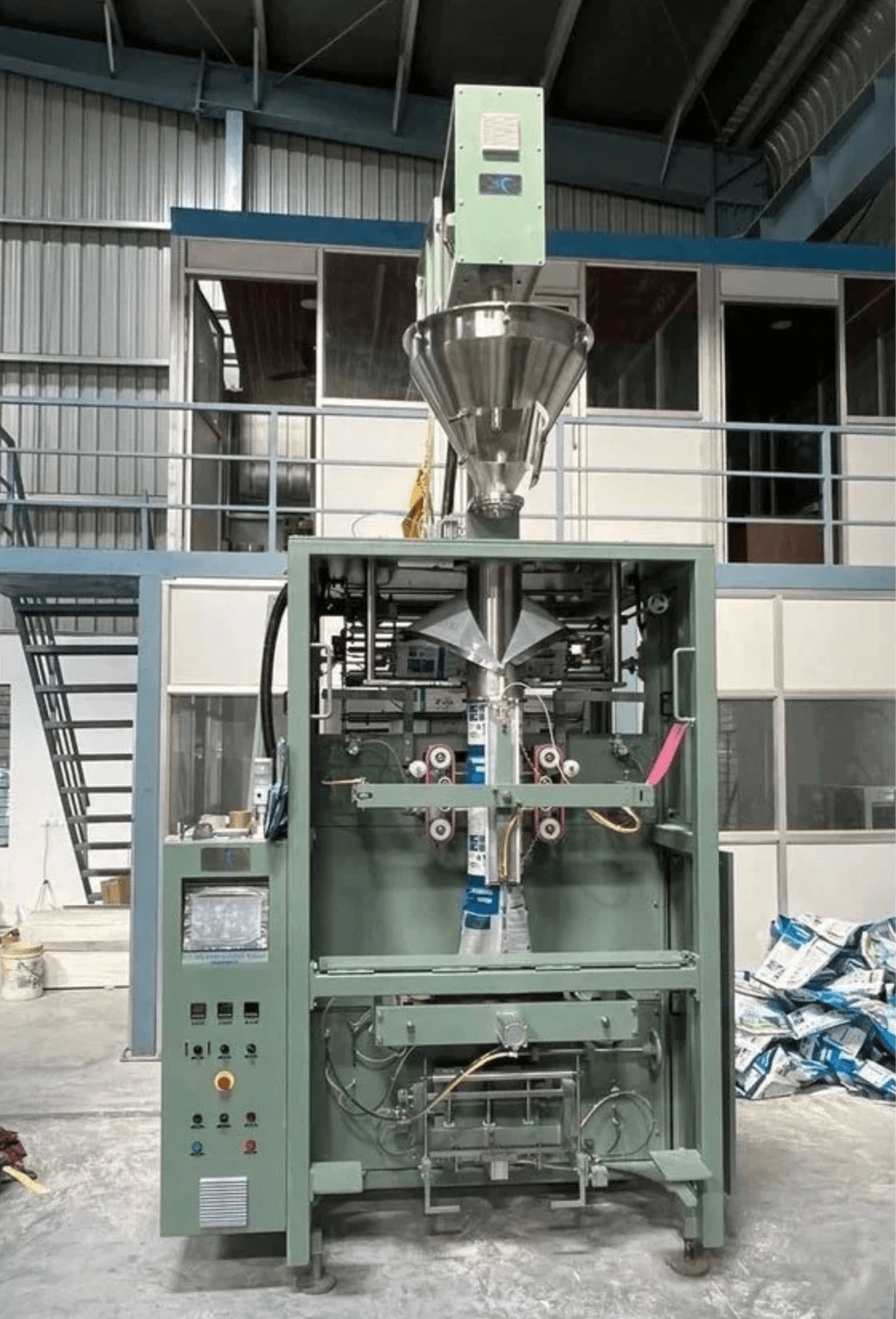

Industrial Automatic Vertical Form-Fill-Seal (VFFS) Pouch Packaging Machine

An industrial-grade packaging workstation designed to form, fill, seal, and cut pouches from roll film at speeds up to 80 units per minute. Built with SS 304 contact components and offered in pneumatic or multi-servo drive configurations for handling powders, grains, and free-flowing solids.

Maintaining tight pack tolerances and clean seals across high-volume production runs requires machinery that eliminates manual guesswork. This vertical form-fill-seal (VFFS) unit automates the entire packaging cycle: pulling film off the reel, forming the pouch collar, measuring precise product volume, sealing the seams, and trimming finished packs.

Built around a heavy-duty frame with food-contact parts crafted from grade 304 stainless steel, the system complies with strict hygiene requirements across food, chemical, and agricultural packaging operations.

Drive & Control Mechanism:

Operators program bag length, heat settings, and feed rates directly through an eye-level color touchscreen interface. The underlying controller tracks reel alignment and maintains steady tension on printed or plain laminated films, keeping artwork centered without constant manual adjustment.

Depending on your production requirements, the unit configures with:

✔ Pneumatic Sealers: Air-actuated sealing jaws delivering high clamping force for thick laminates and heavy industrial fills.

✔ Double / Triple Servo Drives: High-precision motor control over film pull and cross-sealing speed, ideal for thin films and variable pack lengths.

Sealing & Dosing Integration:

➥ The machine pairs directly with standard industry dosing heads. Drop-in volumetric cup fillers handle uniform granules like pulses, sugar, and rice, while motor-driven auger screws feed fine, dusty products like wheat flour (atta), ground spices (haldi, mirchi), and chemical powders.

➥ Thermostatically controlled heating elements hold exact temperature setpoints across long shifts, preventing burn-through on thin barrier films while guaranteeing leak-proof seals on center-seal, 3-side seal, or pillow-style gusseted bags.

Key Capabilities & Operational Strengths:

♦Sanitary Construction: SS 304 stainless steel on all contact zones protects product purity and simplifies washdown procedures.

♦Format Flexibility: Swappable former collars allow quick size changes between 10g small packs and bulk 5kg bags.

♦Seal Integrity: Constant-heat sealing bars generate broad, uniform seals that prevent sifting on fine powders and moisture leakage on dry goods.

♦Lower Downtime: Integrated optical registration sensors detect roll print marks automatically, reducing film waste during product changeovers.

♦Flexible Bag Formats: Produces standard center-seal pouches, 3-side seal bags, and stand-up gusseted packs on the same base chassis.
